Patient Transfer Trolley

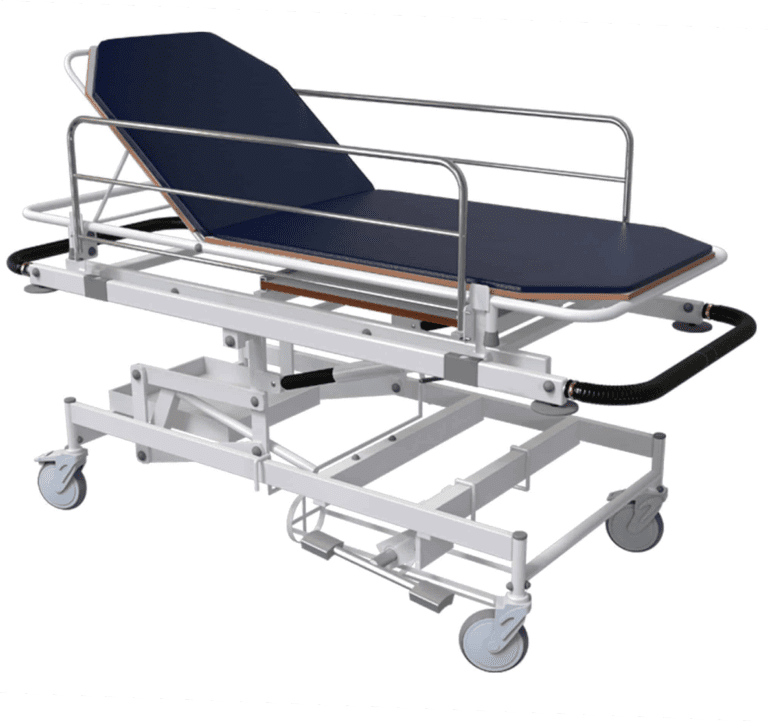

WM-5204 Emergency Recovery Trolley Hydraulic

Major Features

Hi-lo adjustable
650-920mm ± 10mm
Back-rest
0° to 65° ± 2°
Trendelenburg
+15°
Anti-Trendelenburg
+15°

Model : HAPL-022

Emergency Recovery Trolley Hydraulic
FEATURES AND BENEFITS
  • Frame structure is made of CRCA Tubes.
  • Provided with Two section top with removable X-ray permeable stretcher with dimensions 1830 mm L X 560 mm W.
  • Gas spring assisted Trendelenburg & Reverse Trendelenburg positions.
  • Height adjustment by foot operated high-quality hydraulic pump.
  • Provided with backrest on ratchet.
  • Provided with Buffers at four corners
  • Provided with Four 125 mm (5") diameter high grade synthetic body castors with, two with brakes and two without brakes
  • Provided with Synthetic rubber covered push-pull handle on either side.
  • Provided with Sliding X-Ray cassette holder throughout the length of the trolley.
  • Stainless steel telescopic IIV pole along with provision at four positions
  • The complete metal components are pretreated and epoxy powder coated.
  • Provided with Swing -away type stainless steel side rails
  • Provided with Oxygen cylinder holder and SS IV stand.
  • Overall Dimensions: 2100 mm L X 600 mm W

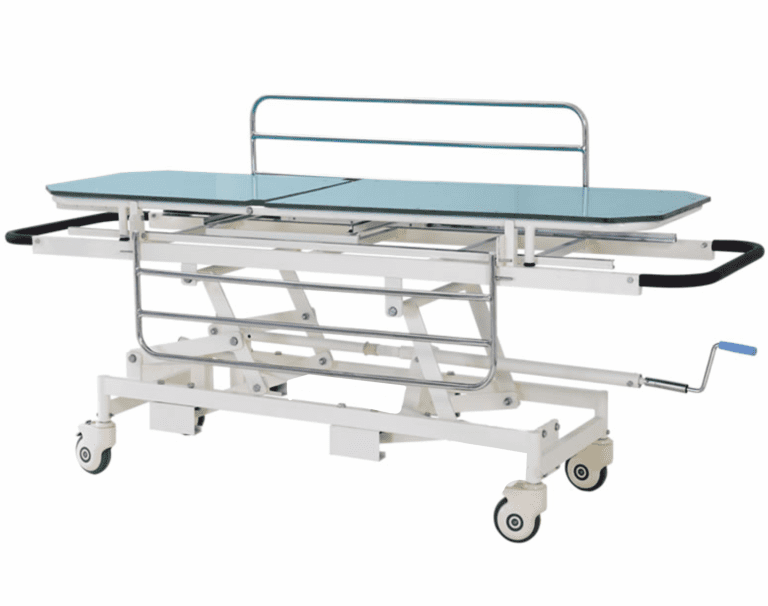

WM-5205 Emergency Recovery Trolley Mechanical

Major Features

Hi-lo adjustable
650-920mm ± 10mm
Back-rest
0° to 65° ± 2°
Trendelenburg
+15°
Anti-Trendelenburg
+15°

Model : HAPL-023

Emergency Recovery Trolley Mechanical
FEATURES AND BENEFITS
  • Frame structure is made of CRCA Tubes.
  • Provided with Two section top with removable X-ray permeable stretcher with dimensions 1830 mm L X 560 mm W
  • Height adjustment, Trendelenburg & Reverse Trendelenburg positions can be achieved by linear crank mechanism at the foot end.
  • Provided with backrest on ratchet.
  • Provided with Buffers at four corners
  • Provided with Four 125 mm (5") diameter high grade synthetic body castors with, two with brakes and two without brakes
  • Provided with Synthetic rubber covered push-pull handle on either side.
  • Provided with Sliding X-Ray cassette holder throughout the length of the trolley.
  • Stainless steel telescopic I V pole along with provision at four positions
  • The complete metal components are pretreated and epoxy powder coated.
  • Provided with Swing -away type stainless steel side rails
  • Provided with Oxygen cylinder holder and SS IV stand.
  • Overall Dimensions: 2100 L X 600 W
