PRODUCT CATALOGUE

Hospital Furniture & Equipment Range

Pick a category on the left to browse every model we manufacture in that range — Fowler beds, ICU beds, trolleys, and more.

PRODUCT CATEGORIES
ICU Bed Fowler Beds Semi Fowler Beds Plain Beds Attendant Beds Bed Accessories Patient Transfer Trolley Stretcher on Trolley Examination / OPD Couch Delivery Beds Pediatric Bed Over Bed Tables Bed Side Locker Emergency Crash Carts Ward Trolley & Furniture Wheel Chairs Multi Seater Chairs Hollow Ware General Equipments Neonatal Care Products LED Surgical Light OT Tables Neuro & Ortho Atch Cubical Curtains Hanging IV Track System

ICU Bed

8 models

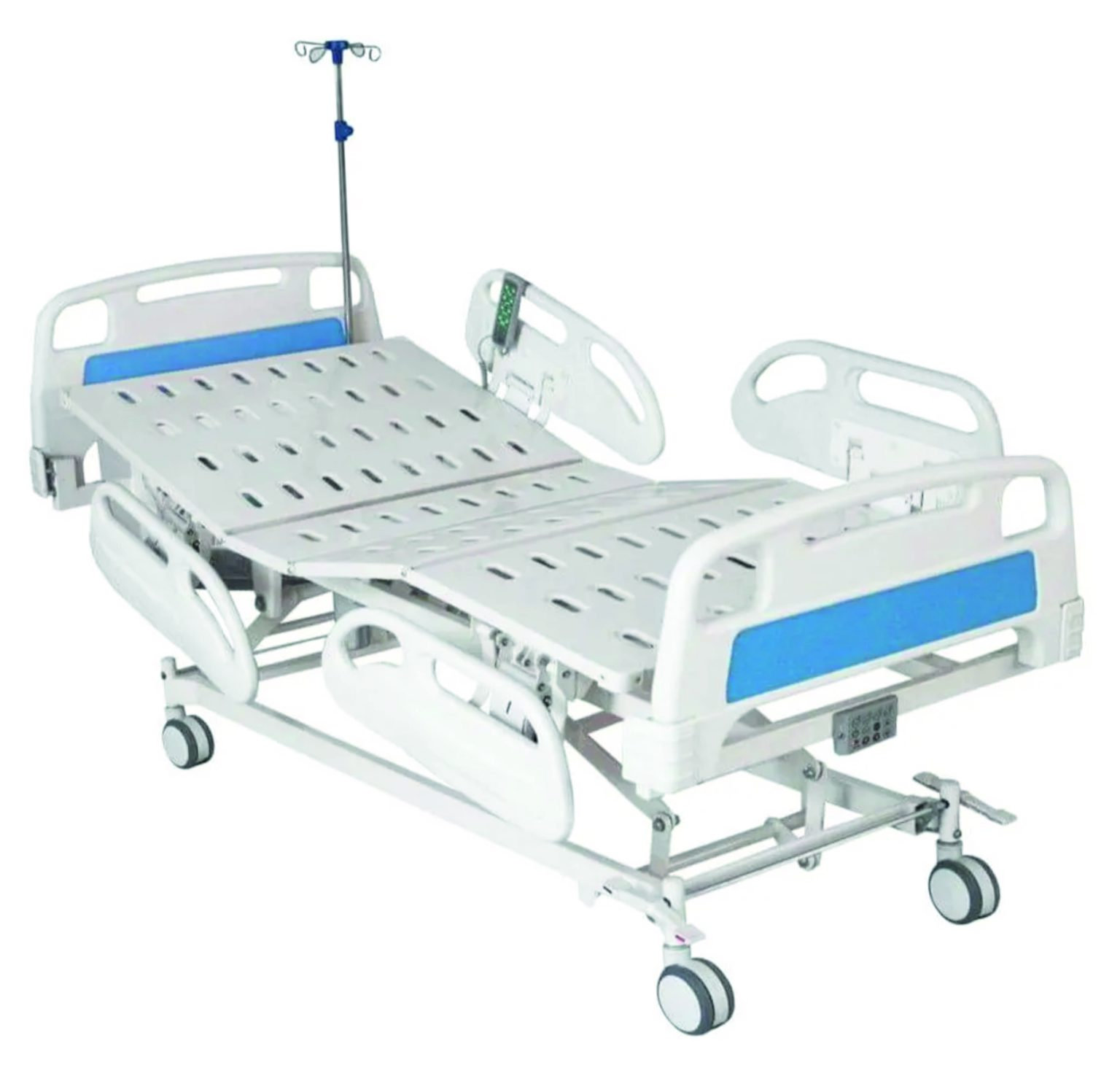

WM-5176-7FC Motorised ICU Bed

Model :HAPL / 001

Motorised ICU Bed
FEATURES AND BENEFITS
  • Mattress area divided into 4 sections made up of CRCA sheet.
  • Detachable polymer molded head & foot boards and four sectional polymer molded safety side rails provide a soothing look.
  • Dual side lever for manual CPR and four corner PU buffers to absorb impact and reduce damage during handling.
  • Provided with heavy duty telescopic IV pole with two hooks having provision of fixing on four corners of the bed.
  • Provided with single/twin wheel heavy duty central locking castors wheels of 125 mm dia for smooth mobility with control.
  • The complete metal components are pretreated and epoxy powder coated.
  • Overall Dimensions: 2160 mm L x 1020 mm W
  • Also available in Diagonal Locking Wheel Option — HAPL-001A

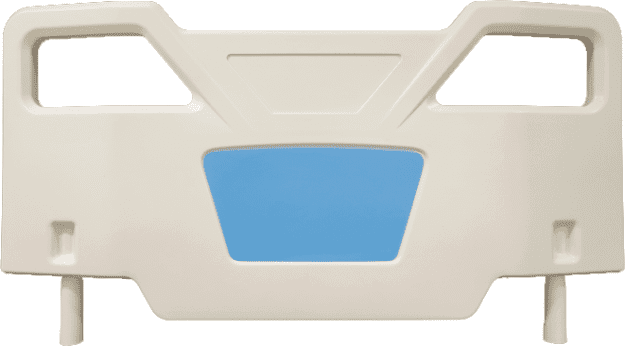

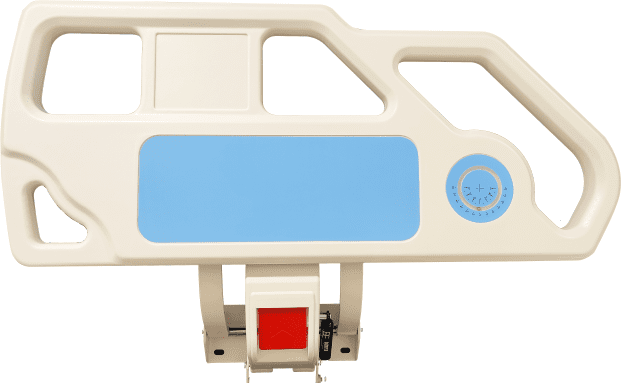

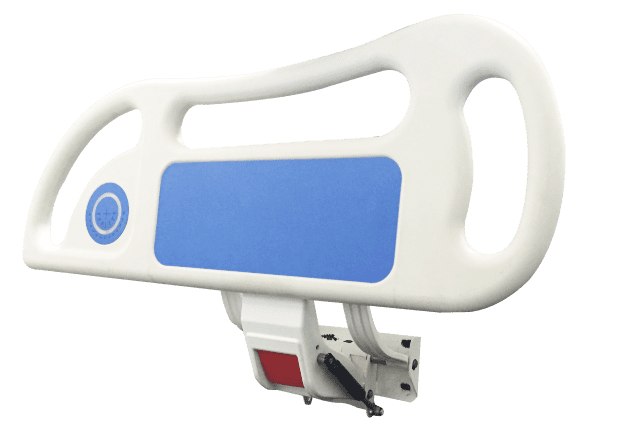

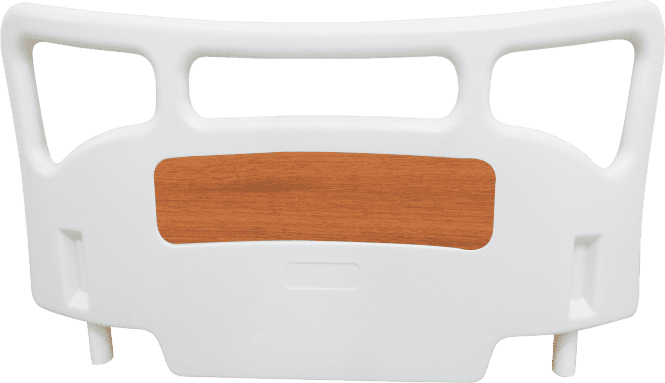

PANEL & RAILING OPTIONS
COLOR OPTIONS
MAJOR FEATURES
HiLo Adjustable
450-730MM
0° to 75° ±2°
BACK-REST
0° to 80° ±2°
TRENDELENBURG
± 12°
ANTI-TRENDELENBURG
Cardiac Position
Fowler Position
Orthopedic
Vascular Position
OPTIONAL ACCESSORIES
Mattress Four Section
Bed Extension 200mm
3 Kg Perforated Backrest with Justifier Holder
Battery Backup
Oxygen Cylinder Cage
Moulded Craft Holder

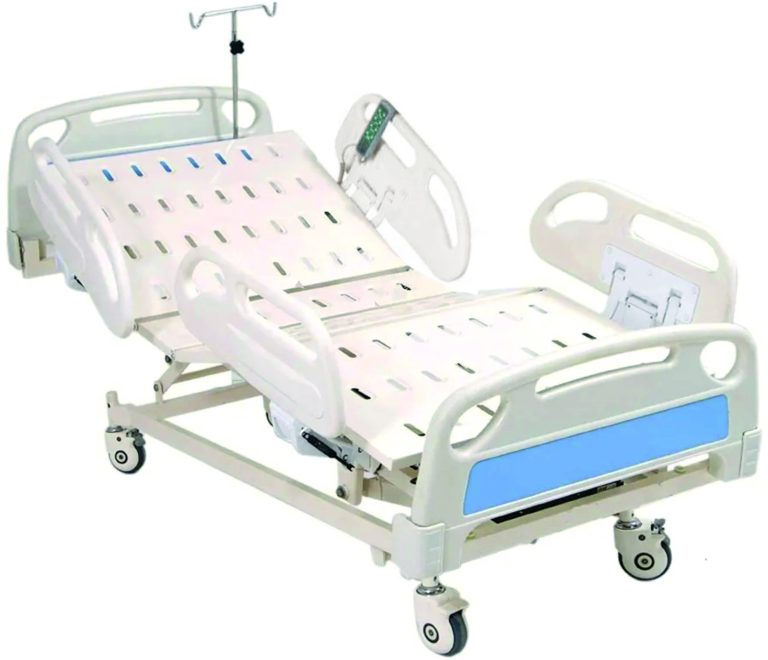

WM-5177-5FD Motorised ICU Bed

Model :HAPL / 002

Motorised ICU Bed
FEATURES AND BENEFITS
  • Mattress area divided into 4 sections made up of CRCA sheet.
  • Detachable polymer molded head & foot boards and four sectional polymer molded safety side rails provide a soothing look.
  • Four corner PU buffers to absorb impact and reduce damage during handling.
  • Provided with heavy duty telescopic IV pole with two hooks having provision of fixing on four corners of the bed.
  • Provided with single wheel heavy duty diagonal locking castors wheels of 125 mm dia for smooth mobility with control.
  • The complete metal components are pretreated and epoxy powder coated.
  • Overall Dimensions: 2160 mm L x 1020 mm W
  • Also available with central locking wheels — HAPL-002A
PANEL & RAILING OPTIONS
COLOR OPTIONS
MAJOR FEATURES
HiLo Adjustable
450-730MM
0° to 75° ±2°
BACK-REST
0° to 80° ±2°
TRENDELENBURG
± 12°
ANTI-TRENDELENBURG
Cardiac Position
Fowler Position
Orthopedic
Vascular Position
OPTIONAL ACCESSORIES
Mattress Four Section
Bed Extension 200mm
3 Kg Perforated Backrest with Justifier Holder
Battery Backup
Oxygen Cylinder Cage
Moulded Craft Holder

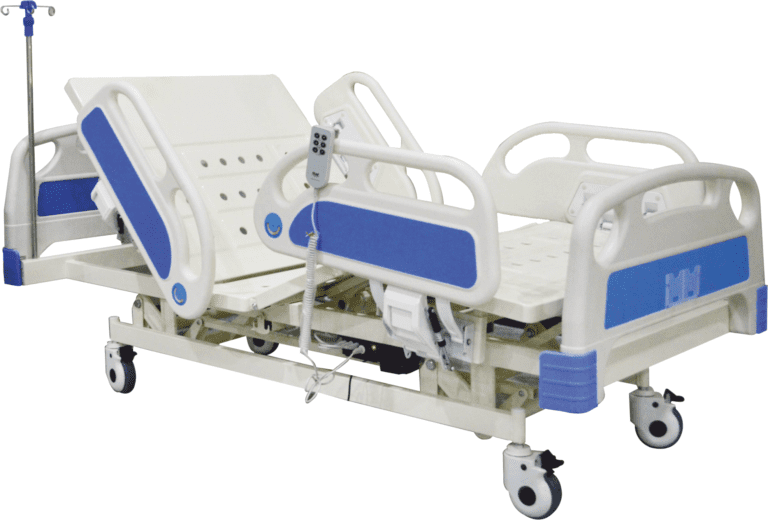

WM-5178-3FD Motorised ICU Bed

Model :HAPL / 003

Motorised ICU Bed (3 Functional Electrical)
FEATURES AND BENEFITS
  • Mattress area divided into 4 sections made up of CRCA Sheet.
  • Detachable Polymer Molded Head & Foot Boards and four sectional polymer molded safety side rails with angle indicators provide a soothing look.
  • Four Corner PU buffers to absorb impact and reduce damage during handling.
  • Provided with Heavy duty telescopic IV Pole with two hooks having provision of fixing on four corners of the bed.
  • Provided with Single wheel heavy duty Diagonal Locking Castors Wheels of 125 mm dia for smooth mobility with control.
  • The complete metal components are Pretreated and Epoxy powder coated.
  • Overall Dimensions: 2160 mm L x 1020 mm W
PANEL & RAILING OPTIONS
COLOR OPTIONS
MAJOR FEATURES
Hi-Lo Adjustable
460-750mm ±10mm
0° to 75° ±2°
BACK-REST
0° to 35° ±2°
KNEE-REST
OPTIONAL ACCESSORIES
X-Ray Permeable Backrest with Cassette Holder
Oxygen Cylinder Cage
Moulded Craft Holder
WM 5101 3FD Motorised ICU Bed

Model :HAPL / 004

Motorised ICU Bed (3 Functional Electrical)
FEATURES AND BENEFITS
  • Mattress area divided into 4 sections made up of CRCA Sheet.
  • Detachable Polymer Molded Head & Foot Boards and four sectional polymer molded safety side rails with angle indicators provide a soothing look.
  • Four Corner PU buffers to absorb impact and reduce damage during handling.
  • Provided with Heavy duty telescopic IV Pole with two hooks having provision of fixing on four corners of the bed.
  • Provided with Single wheel heavy duty Diagonal Locking Castors Wheels of 125 mm dia for smooth mobility with control.
  • The complete metal components are Pretreated and Epoxy powder coated.
  • Overall Dimensions: 2160 mm L X 1020 mm W
PANEL & RAILING OPTIONS
COLOR OPTIONS
MAJOR FEATURES
Hi-Lo Adjustable
460-750mm ±10mm
0° to 75° ±2°
BACK-REST
0° to 35° ±2°
KNEE-REST
OPTIONAL ACCESSORIES
X-Ray Permeable Backrest with Cassette Holder
Oxygen Cylinder Cage
Moulded Craft Holder
WM 5178 3FD Motorised ICU Bed

Model :HAPL / 005

Motorised ICU Bed
FEATURES AND BENEFITS
  • Mattress area divided into 4 sections made up of CRCA Sheet.
  • Detachable Polymer Molded Head & Foot Boards and four sectional polymer molded safety side rails with angle indicators provide a soothing look.
  • Dual Side Lever for Manual CPR and four Corner PU buffers to absorb impact and reduce damage during handling.
  • Provided with Heavy duty telescopic IV Pole with two hooks having provision of fixing on four corners of the bed.
  • Provided with Single wheel heavy duty Diagonal Locking Castors Wheels of 125 mm dia for smooth mobility with control.
  • The complete metal components are Pretreated and Epoxy powder coated.
  • Overall Dimensions: 2160 mm L X 1020 mm W
PANEL & RAILING OPTIONS
COLOR OPTIONS
MAJOR FEATURES
Hi-Lo Adjustable
460-750mm ±10mm
0° to 75° ±2°
BACK-REST
0° to 35° ±2°
KNEE-REST
± 12°
TRENDELENBURG
± 12°
ANTI-TRENDELENBURG
OPTIONAL ACCESSORIES
Mattress Four Section
Oxygen Cylinder Cage
Moulded Craft Holder

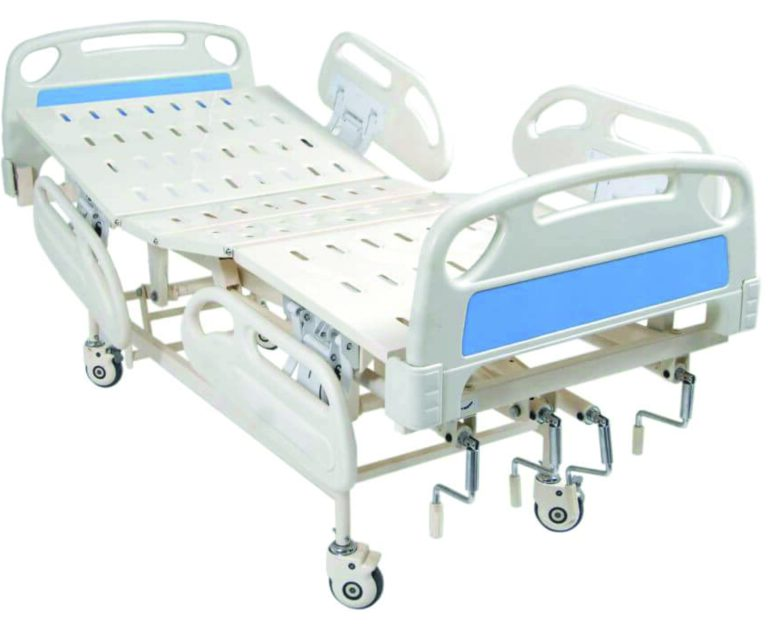

WM-5180 Mechanical ICU Bed

Model :HAPL / 006

Mechanical ICU Bed
FEATURES AND BENEFITS
  • Mattress area divided into 4 sections made up of CRCA Sheet.
  • Detachable Polymer Molded Head & Foot Boards and four sectional polymer molded safety side rails with angle indicators provide a soothing look.
  • Major Features include maneuverable by smooth crank mechanism with separate folding SS Handles.
  • Four Corner PU buffers to absorb impact and reduce damage during handling.
  • Provided with Heavy duty telescopic IV Pole with two hooks having provision of fixing on four corners of the bed.
  • Provided with Single wheel heavy duty Diagonal Locking Castors Wheels of 125 mm dia for smooth mobility with control.
  • The complete metal components are Pretreated and Epoxy powder coated.
  • Overall Dimensions: 2160 mm L X 1020 mm W
PANEL & RAILING OPTIONS
COLOR OPTIONS
MAJOR FEATURES
Hi-Lo Adjustable
500-700mm ±10mm
0° to 75° ±2°
BACK-REST
0° to 30° ±2°
KNEE-REST
± 8°
TRENDELENBURG
± 8°
ANTI-TRENDELENBURG
OPTIONAL ACCESSORIES
Mattress Four Section
X-Ray Permeable Backrest with Cassette Holder
Oxygen Cylinder Cage
Moulded Craft Holder

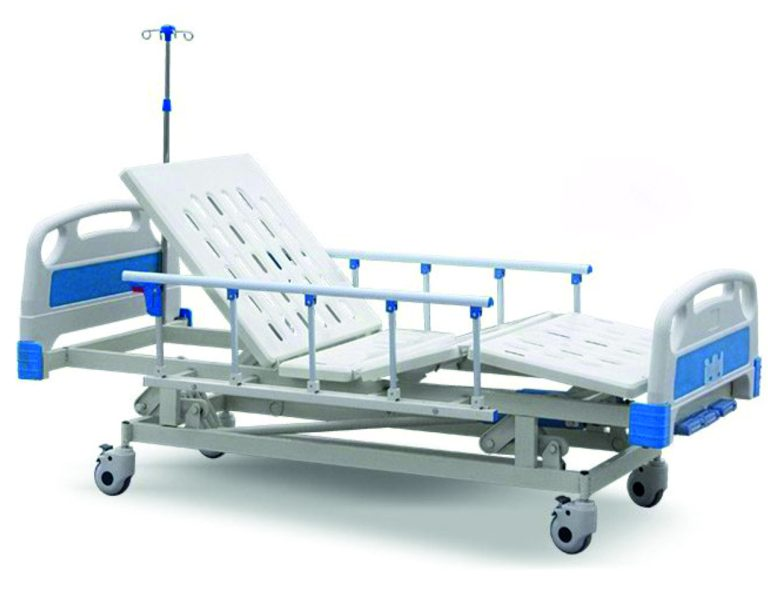

WM-5181 Mechanical ICU Bed

Model :HAPL / 007

Mechanical ICU Bed
FEATURES AND BENEFITS
  • Mattress area divided into 4 sections made up of CRCA Sheet.
  • Detachable Polymer Molded head and foot bows provide a soothing look.
  • Provided Collapsible Safety Side Rails.
  • Major Features include maneuverable by smooth crank mechanism with separate folding SS Handles.
  • Provided with Corner PU buffers to absorb impact and reduce damage during handling.
  • Provided with Heavy duty IV Pole having provision of fixing on four locations.
  • Provided with Single wheel heavy duty Diagonal Locking Castors Wheels of 125 mm dia for smooth mobility with control.
  • The complete metal components are Pretreated and Epoxy powder coated.
  • Overall Dimensions: 2160 mm L X 1020 mm W
PANEL & RAILING OPTIONS
OPTIONAL ACCESSORIES
Mattress Four Section
X-Ray Permeable Backrest with Cassette Holder
Oxygen Cylinder Cage
Moulded Craft Holder

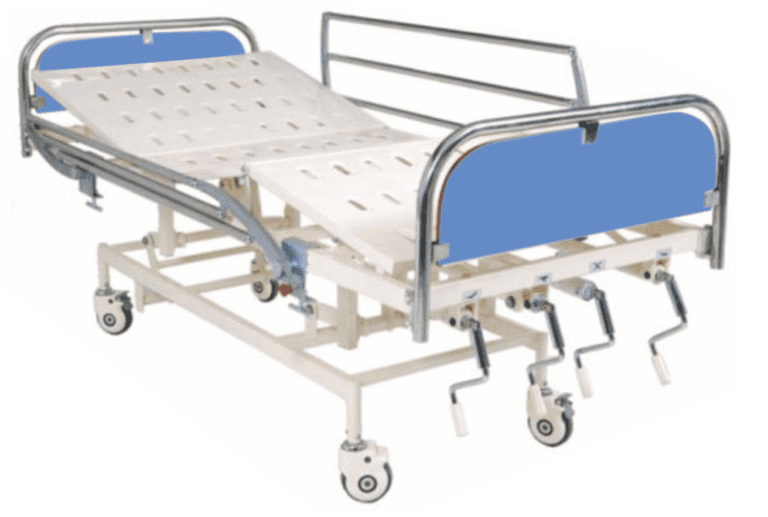

WM-5182 Mechanical ICU Bed

Model :HAPL / 008

Mechanical ICU Bed
FEATURES AND BENEFITS
  • Mattress area divided into 4 sections made up of CRCA Sheet.
  • Detachable Stainless Steel Wooden Laminated head and foot bows provide a soothing look.
  • Provided Collapsible Safety Side Rails.
  • Major Features are maneuverable by smooth crank mechanism with separate folding SS Handles.
  • Provided with Corner PU buffers to absorb impact and reduce damage during handling.
  • Provided with Heavy duty IV Pole having provision of fixing on four locations.
  • Provided with Single wheel heavy duty Diagonal Locking Castors Wheels of 125 mm dia for smooth mobility with control.
  • The complete metal components are Pretreated and Epoxy powder coated.
  • Overall Dimensions: 2100 mm L X 1020 mm W
MAJOR FEATURES
Hi-Lo Adjustable
500-700mm ±10mm
0° to 75° ±2°
BACK-REST
0° to 30° ±2°
KNEE-REST
± 8°
TRENDELENBURG
± 8°
ANTI-TRENDELENBURG
OPTIONAL ACCESSORIES
Mattress Four Section
X-Ray Permeable Backrest with Cassette Holder
Oxygen Cylinder Cage
Moulded Craft Holder
