Delivery Beds
*Also Available in Complete Stainless Steel. WM-5249-SS

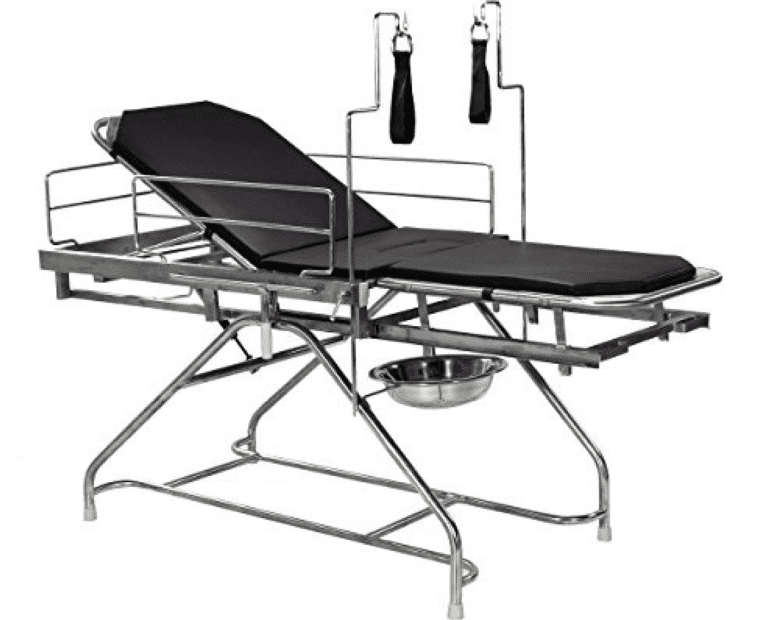

Model : HAPL-029
Labour Table Fix
FEATURES AND BENEFITS
- Three sections top made up of SS.
- Leg section sliding completely under the main section.
- Base frame made up of CRCA tubes.
- Trendelenburg’s position achieved by pneumatic pump.
- Back rest adjustable with ratchet mechanism.
- Lithotomy crutches/Lithotomy rods with straps.
- Provided with suitable mattress.
- The complete metal components are pretreated and epoxy powder coated.
- Overall Dimension :1830 L X 680 W X 760 H mm.
*Also Available in Complete Stainless Steel. WM-5250-SS

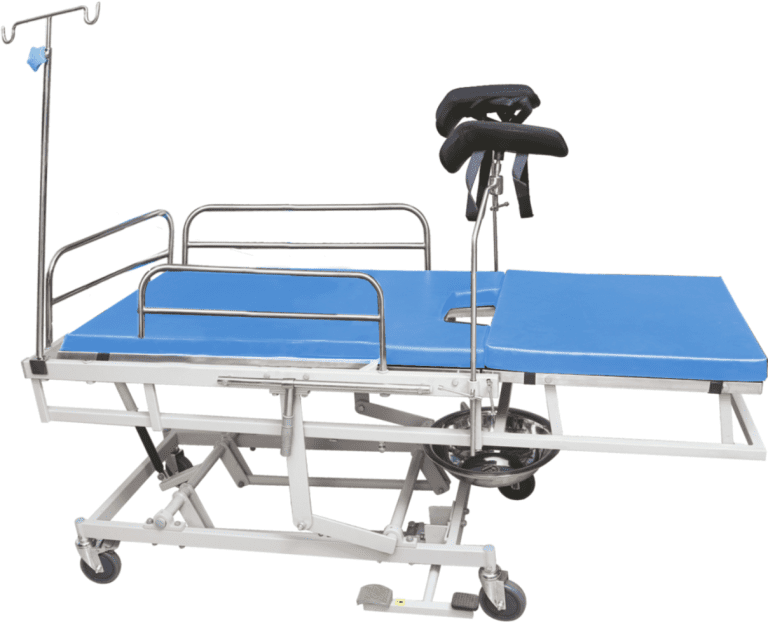

Model : HAPL-030
Labour Table Height Adjustable
FEATURES AND BENEFITS
- Frame made of CRCA pipes/sheets with adjustable perineal cut.
- Three sectional tops made of Stainless Steel fixed on trolley base mounted on 125 mm castors
- Leg section sliding completely under the main section.
- Trendelenburg’s position can be achieved by using pneumatic pump.
- Waste collection tray is positioned below the perineal cut.
- Back rest adjustable with ratchet mechanism.
- Height can be adjusted by hydraulic pump.
- Hand grips.
- Lithotomy crutches and mattress
- The complete metal component is pretreated and epoxy powder coated.
- Overall Dimension : 1830 L X 680 W
- Minimum 600 to 800 Maximum Height

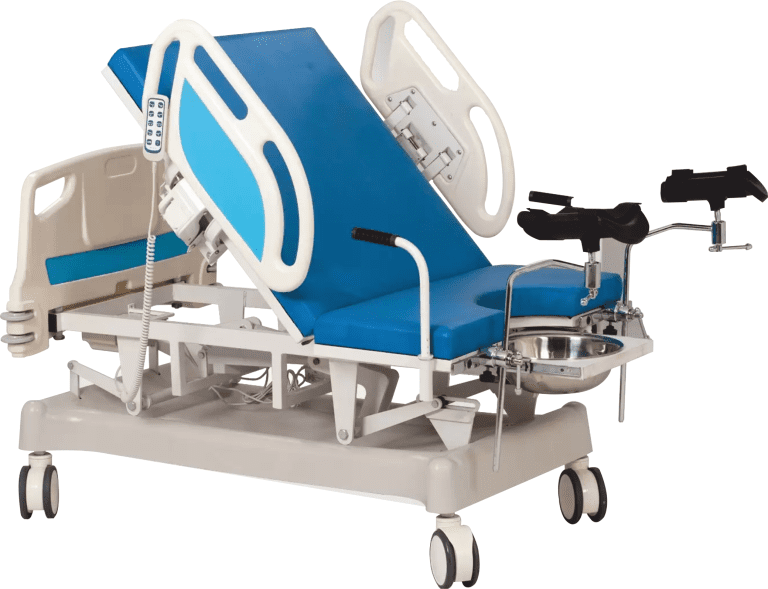

Model : HAPL-031
LDR Bed / Motorized
Features and Benefits
- Mattress area divided into 3 sections made up of CRCA sheet.
- Detachable polymer molded head and foot bows provide a soothing look.
- Provided with polymer molded safety side rails.
- Corner PU buffers absorb impact and reduce damage in handling.
- Provided with heavy duty saline stand with provision for fixing it at all four locations.
- Castors of 125mm dia. With Diagonal locking mechanism for mobility with control.
- Back rest, Trendelenburg / Reverse Trendelenburg, High-low, position maneuverable by separate actuator operated by patient control.
- Overall Dimensions : Frame Size-2130L X 1050W (when fully extended)
- Frame size (Approx.): 1520 L X 940W (when leg section under the middle section)
- Mattress Platform Dimension: 1930 mm L X 760 mm W
- The complete metal components are Pretreated and Epoxy Powder Coated.
- Provided with High Density three section mattress of suitable dimension.
- Accessories: one collection tray, one set of lithotomy rod and crutches, one heavy duty IV pole, one set of hand grip.
Major Features
Hi-Lo adjustable
600-800mm ±10mm
600-800mm ±10mm
Back-rest
0° to 75°±2°
0° to 75°±2°
Trendelenburg
0-12° ± 2°
0-12° ± 2°
Anti-Trendelenburg
0-12° to ±2°
0-12° to ±2°

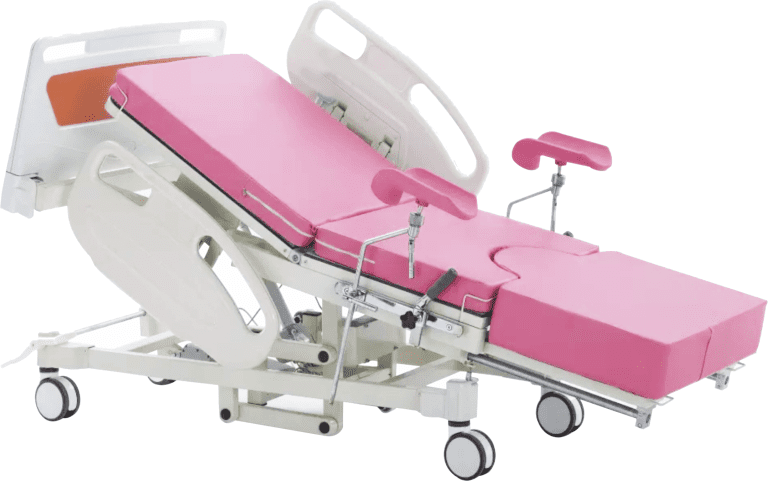

Model : HAPL-032
LDR Bed Hydraulic
Features and Benefits
- Mattress area divided into 3 sections made up of CRCA sheet.
- Detachable polymer molded head and foot bows provide a soothing look.
- Provided with polymer molded safety side rails.
- Corner PU buffers absorb impact and reduce damage in handling.
- Provided with heavy duty saline stand with provision for fixing it at all four locations.
- Castors of 125 mm dia. With Diagonal locking mechanism for mobility with control.
- Back rest, Trendelenburg / Reverse Trendelenburg positions maneuverable by separate Crank Mechanism.
- Height can be adjusted with Heavy Duty Hydraulic Pump.
- Overall Dimensions : Frame Size -1950 mm L X 1040 mm W (when fully extended)
- Frame size (Approx.): 1420 mm L X 950 mm W (when leg section under the middle section)
- Mattress Platform Size: 1880 mm L X 660 mm W
- The complete metal components are Pretreated and Epoxy Powder Coated.
- Provided with High Density three section mattress of suitable dimension.
- Accessories: one collection tray, one set of Lithotomy Rod and Crutches, one heavy duty IV pole, one set of hand grip.
Major Features
Hi-Lo adjustable
600-800mm ±10mm
600-800mm ±10mm
Back-rest
0° to 75°±2°
0° to 75°±2°
Trendelenburg
0-12° ± 2°
0-12° ± 2°
Anti-Trendelenburg
0-12° to ±2°
0-12° to ±2°
